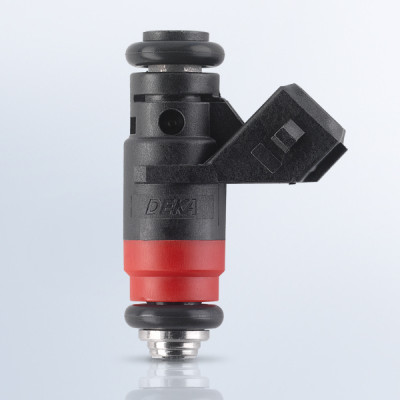

80 lb/hr Siemens Deka V Fuel Injectors High Impedance Injectors ( Short Style )

$59.95

OFF ROAD USE NOTICE: items sold through Power Adder Solutions including tuning products,supercharger / turbocharger systems maybe designed for off-road/race use only, and are not applicable for vehicles in states that require pollution controlled vehicles. California (CARB) & other states prohibit the sale or use of some aftermarket parts, including those that tamper with, modify or defeat emissions systems in any 1966 and newer vehicles. Power Adder Solutions prohibits the use of these products on emission controlled roads. These parts are sold for OFF ROAD, RACE-ONLY, ground-vehicle use only controlled environment.

Power Adder Solutions does not implicitly or explicitly confirm the legality of using any products it sells on public roads, that is entirely the responsibility of the consumer.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

80 lb/hr Siemens Deka V Fuel Injectors High Impedance Injectors ( Short Style )

These Ultra-Compact, high flow injectors are just 48mm end to end and dimensionally identical to the popular 60lb/hr Deka IV Shorty Injectors! These injectors flow 80 lbs/hr at 43.5 PSI ( 3 BAR )! In addition, these units are high-impedance. Despite the high flow rate, they are linear and controllable at low pulse widths. This allows you to use a larger injector than normally possible without hurting idle and low speed driveability. Adding to the flexibility of application, these units are high-impedance; making them compatible with most ECUs, while delivering the most flow available in a High-Impedance injector.

These injectors are able to function at high fuel pressures and don’t exhibit the high fuel pressure handling problems found with many other high flow high-impedance injectors. This makes these injectors very well suited to turbocharged and supercharged applications that see high fuel system pressures.

Engine performance and running quality are enhanced through the optimized spray pattern. Unlike competitors “pencil stream” high flow injectors; these High Flow injectors utilize a multi-orifice tip providing a true 26 degree spray pattern for improved mixture preparation. This results in lower BSFC and better idle quality than many injectors with less flow.

FEATURES:
Genuine, reliable Siemens Injectors
Excellent response characteristics
Robust Design
High Impedance
Low Impedance performance characteristics with High Impedance Compatibility
Specifications:
Coil Resistance: 12.5 Ohms / High Impedance / High-Z (No ECM driver modifications required)
Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 80 lb/hr = 875 cc/min
Offset: 0.065ms
Turn on time @ 14VDC: 1.3ms
Turn off time: 0.7ms @ 600KPa
Connector: Bosch EV1
Series: DEKA 5 ( DEKA V )
Orifice Type: 8 hole Multi-orifice
Spray Pattern: 26 Degree Spray Cone
Factory fitted with Viton upper and lower o-rings
48mm end to end
Equivalent Part Numbers:
Siemens A2C32624700
