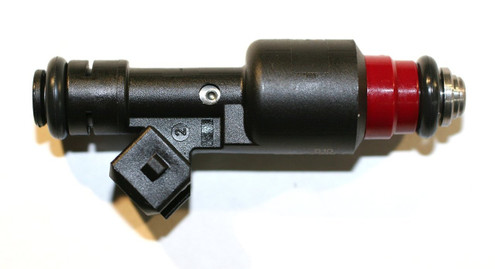

2200cc 220 lb/hr Siemens Deka Fuel Injectors Low Impedance Gas & Flex Fuel Injectors (Long Style) EV1 Connector

Genuine Siemens DEKA IV Mototron 212 lb/hr Low Impedance Gas & Flex Fuel Injectors ( Long Style )

These injectors flow 220 lbs/hr at 43.5 PSI ( 3 BAR ) and more at higher PSI! These units are low-impedance and require peak and hold injector drivers or additional resistors for saturation drivers. Despite the high flow rate, they are linear and controllable at low pulse widths compared to other extreme flow injectors! These injectors are sometimes referred to as 212lb/hr or 225lb/hr injectors.

These injectors will allow you to run methanol, ethanol and other flex fuels with fewer injectors for high horsepower applications. Don't settle for questionable modified high flow injectors when you can have Genuine Siemens quality and performance with these injectors. These injectors are perfectly suited for Extreme horsepower turbo & supercharger applications.

Features:
Genuine, reliable Siemens Injectors
Excellent response characteristics
Robust Design
Low Impedance
Fits in most Deka I, Deka IV Long Style, Deka V Long Style, & Deka VII Long Style applications

Specifications:
Coil Resistance: 2.27 Ohms / Low Impedance / Low-Z (ECM peak & hold driver or modifications required)
Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 220 lb/hr = 2433 cc/min
Offset: 0.64ms
Turn on time: 1.5ms
Turn off time: 1.3ms
Connector: Bosch EV1
Series: DEKA 4 ( DEKA IV )
Orifice Type: Single Orifice
Spray Pattern: 10-15 Degree Pencil Cone
Factory fitted with Viton upper and lower o-rings

Equivalent Part Numbers:
Siemens FI114212
Siemens 110333
